RD-XLF200BF
Machine Advantages
Built for Precision, Speed & Sustainable Cup Production
The RD-XLF200BF Servo Paper Cup Machine combines advanced servo technology, intelligent control, and eco-friendly material compatibility to help manufacturers achieve higher productivity, stable cup quality, and long-term production efficiency. Designed for 2.5–12 oz paper cup production, it is ideal for modern beverage packaging and sustainable paper cup manufacturing projects.
Advanced Servo Precision
- Independent servo motors control key forming stations for improved synchronization.
- Higher forming accuracy helps reduce defects and material waste.
- Stable motion control supports continuous production at 180–210 cups per minute.
Eco-Friendly Material Compatibility
- Supports PE coated paper, PLA coated paper, and plastic-free coated paper.
- Compatible with sustainable packaging requirements and environmental regulations.
- Allows manufacturers to serve both traditional and eco-friendly packaging markets.
Smart Operation & Reliable Performance
- PLC control system and photoelectric sensors monitor production in real time.
- Automatic fault detection helps reduce downtime and improve operational safety.
- Installation guidance, operator training, spare parts support, and technical assistance available.
Specifications
RD-XLF200BF Technical Specifications
The following specifications are provided as a reference for the RD-XLF200BF Servo Paper Cup Machine. Actual production performance may vary depending on cup size, paper material, operator experience, mold configuration, and factory production conditions.
| Item | Specification | Buyer Consideration |
|---|---|---|
| Model | RD-XLF200BF | Servo-driven paper cup machine designed for high-speed production, improved forming precision, and eco-friendly paper cup manufacturing. |
| Production Capacity | 180–210 pcs/min | Suitable for medium and large-scale paper cup manufacturers seeking higher productivity and stable output. |
| Cup Size Range | 2.5–12 OZ | Covers tasting cups, coffee cups, tea cups, dessert cups, and various beverage packaging applications. |
| Cup Dimensions |
Top Diameter: 50–85 mm Height: 40–110 mm |
Confirm cup specifications before mold selection and production planning. |
| Paper Weight | 170–350 g/m² | Paper thickness affects forming quality, cup strength, and machine configuration. |
| Compatible Materials |
Single PE Coated Paper Double PE Coated Paper PLA Coated Paper Water-Based Coated Paper Plastic-Free Coated Paper |
Supports both traditional and environmentally friendly paper cup production requirements. |
| Control System | Independent Servo Control + PLC System | Improves synchronization, forming precision, and production stability while reducing mechanical wear. |
| Side Sealing Method | Ultrasonic Welding System | Provides strong and clean cup sidewall sealing suitable for high-speed production. |
| Power Supply | 380V / 50Hz / 3 Phase | Voltage and electrical configuration can be customized according to local standards. |
| General Power | 10 KW | Energy-efficient servo technology helps optimize power consumption during production. |
| Air Consumption | 0.5 m³/min | A stable compressed air supply is required to ensure consistent forming performance. |
| Machine Weight | 2500 Kg | Confirm workshop floor load capacity and installation conditions before shipment. |
| Machine Dimensions | 2300 × 1600 × 2000 mm | Compact machine design helps maximize production efficiency while minimizing floor space requirements. |
| Typical Products | Coffee Cups, Tea Cups, Cold Drink Cups, Dessert Cups, Sampling Cups | Suitable for foodservice packaging, beverage brands, restaurants, and takeaway businesses. |
| Supporting Equipment | Paper Cup Printing Machine, Paper Cup Die Cutting Machine, Air Compressor, Packing Equipment | Ideal for customers planning complete paper cup production lines rather than purchasing a single machine. |
| Support Services | Installation Guidance, Operator Training, Spare Parts Support, Technical Assistance | Useful for overseas buyers, distributors, and new paper cup manufacturing projects. |
Download Product Information
Features & Technology
RD-XLF200BF Servo Paper Cup Machine Features
The RD-XLF200BF combines advanced servo technology, intelligent control systems, and precision cup forming components to support stable production speeds of up to 210 cups per minute while maintaining consistent cup quality and production efficiency.
Intelligent Control Panel
The user-friendly control interface allows operators to monitor production status, adjust machine parameters, view alarm notifications, and manage production more efficiently through centralized digital control.
Automatic Paper Fan Feeding
The precision feeding system delivers paper fan blanks accurately and continuously, helping reduce feeding errors, improve production consistency, and support stable high-speed cup manufacturing.
Ultrasonic Side Sealing System
The high-precision ultrasonic welding system creates strong and clean cup sidewall seams without adhesives, making it suitable for both traditional and eco-friendly paper cup production.
Precision Bottom Knurling
Consistent knurling pressure improves bottom sealing strength and helps produce leak-resistant paper cups suitable for hot drinks, cold beverages, and foodservice applications.
Two-Step Cup Rim Curling
The two-stage curling process combines initial shaping and final heat forming to create smooth, durable cup rims with improved appearance, strength, and user comfort.

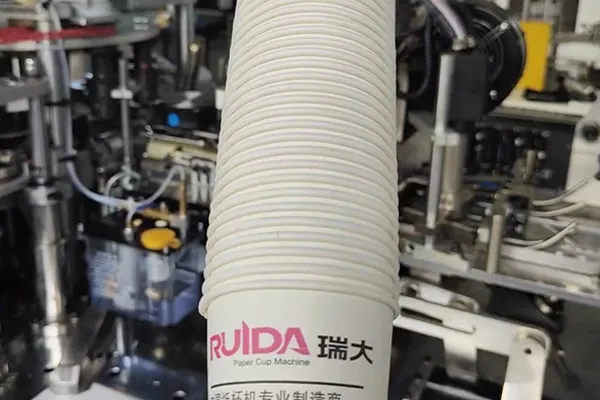

Automatic Cup Counting
The integrated counting system tracks production output automatically, helping operators monitor efficiency, organize finished products, and simplify downstream packing operations.
Materials & Applications
Compatible Materials & Sustainable Paper Cup Applications
The RD-XLF200BF Servo Paper Cup Machine is designed for both conventional and environmentally friendly paper cup production. It supports a wide range of food-grade paper materials, including PE-coated, PLA-coated, water-based coated, and plastic-free paper solutions used in modern beverage and food packaging industries.
Compatible Paper Materials
Food-Grade Base Paper
150–450 gsm paperboard with high stiffness, smooth surface, and stable forming performance.
PE-Coated Paper
Single and double PE coated paper widely used for hot and cold drink cup production.
PLA-Coated Paper
Compostable and plant-based material suitable for sustainable paper cup manufacturing.
Water-Based Coated Paper
Plastic-free, recyclable, and repulpable paper material for environmentally conscious packaging projects.
Specialty Papers
Kraft paper, colored paper, and specialty packaging materials for custom cup production.
Typical Paper Cup Applications
Coffee Cups
Hot beverage packaging
Milk Tea Cups
Bubble tea & beverage brands
Cold Drink Cups
Juice & soft drink packaging
Ice Cream Cups
Frozen dessert packaging
Dessert Cups
Yogurt & snack packaging
Custom Printed Cups
Brand promotion & retail packaging
Sampling Cups
Product tasting & promotional events
Typical Eco-Friendly Paper Cup Production Workflow
Cup Design & Artwork
Brand design, cup graphics, and packaging development
Printing
Paper cup flexographic printing machine
Die Cutting
Paper cup fan die cutting machine
Cup Forming
RD-XLF200BF Servo Paper Cup Machine
Quality Inspection
Check sealing strength, dimensions, and cup appearance
Machine Video
Watch the RD-XLF200BF Servo Paper Cup Machine Running at Full Speed
Evaluate machine performance through real production videos. See how the servo control system improves forming precision, production stability, and compatibility with sustainable paper cup materials.
Advanced Servo Control Observe servo-driven forming stations working with greater accuracy and synchronization.
Sustainable Paper Compatibility Review production using PLA-coated, water-based coated, and plastic-free paper materials.
Finished Cup Performance Check cup sealing quality, rim curling consistency, and overall finished cup appearance.
FAQ
RD-XLF200BF Servo Paper Cup Machine FAQs
Practical answers for buyers evaluating the RD-XLF200BF Servo Paper Cup Machine, including servo technology, eco-friendly materials, production capacity, cup sizes, installation, and long-term operation.
What is the production speed of the RD-XLF200BF servo paper cup machine?
The RD-XLF200BF is designed for high-speed production with a capacity of approximately 180–210 paper cups per minute, depending on cup size, paper material, and operating conditions.
What cup sizes can the RD-XLF200BF produce?
The machine supports paper cup sizes ranging from 2.5 oz to 12 oz. Different molds can be installed to accommodate various cup specifications and production requirements.
What paper materials are compatible with this machine?
The RD-XLF200BF supports food-grade base paper, single PE coated paper, double PE coated paper, PLA coated biodegradable paper, water-based coated paper, and other plastic-free paper materials used in sustainable packaging.
How does the servo control system improve production performance?
The servo system independently controls key forming stations, improving synchronization, forming precision, and production stability while reducing mechanical wear and maintenance requirements.
Is this machine suitable for eco-friendly paper cup production?
Yes. The RD-XLF200BF is specifically designed to support PLA-coated, water-based coated, and plastic-free paper materials, making it suitable for environmentally responsible paper cup manufacturing projects.
What types of paper cups can be produced with this machine?
The machine is suitable for producing coffee cups, tea cups, milk tea cups, cold drink cups, dessert cups, sampling cups, promotional cups, and other disposable paper cups used in foodservice and beverage markets.
What sealing technology does the RD-XLF200BF use?
The machine utilizes an ultrasonic welding system for cup sidewall sealing, providing strong and clean seams without adhesives while supporting stable high-speed production.
Can the machine be customized for my country’s electrical standards?
Yes. Voltage, frequency, and electrical configurations can be customized according to local factory requirements and destination market standards before manufacturing.
Can CE certificates and export documents be provided?
Yes. CE certification and other export-related documents can be provided according to project requirements and destination country regulations. Please confirm certification requirements before ordering.
Does RUIDA Machine provide installation, training, and after-sales support?
Yes. RUIDA Machine provides installation guidance, operator training, commissioning support, spare parts supply, troubleshooting assistance, and ongoing technical support for overseas customers and distributors.
Send Inquiry
Get a Suitable Machine Recommendation
Tell us your target paper packaging product, material, size range, and capacity requirement. Ruida Machine will help recommend suitable equipment and production workflow options.
- Machine recommendation based on product type and material.
- Production line planning for printing, die cutting, forming, and packing.
- Support for machine configuration, molds, installation, and startup.
