RDRY-320B-9C
Machine Advantages
Built for High-Value Label Production
The RDRY-320B-9C Full Servo 9 Color Label Flexo Printing Machine is engineered for label converters and packaging printers that require superior print quality, accurate registration, and greater production flexibility. Its advanced servo-driven system helps manufacturers reduce waste, improve efficiency, and expand into premium label markets.
9-Color Printing for Premium Labels
- Supports complex multi-color label designs, spot colors, and premium packaging graphics.
- Ideal for cosmetic labels, pharmaceutical labels, wine labels, beverage labels, and specialty packaging.
- Helps printers expand into higher-margin label production markets.
Full Servo Registration Control
- Independent servo motors improve registration accuracy throughout the printing process.
- Reduces color variation and registration errors during long production runs.
- Provides consistent print quality for demanding label applications.
Faster Setup and Lower Material Waste
- Automatic tension management helps stabilize web movement and improve production efficiency.
- Reduces startup waste during job changeovers and repeat orders.
- Supports cost-effective production for both short-run and long-run label jobs.
Specifications
RDRY-320B-9C Technical Specifications
The following specifications are provided as a reference for the RDRY-320B-9C Full Servo 9 Color Label Flexo Printing Machine. Actual production performance may vary depending on substrate type, printing design, ink system, operator experience, and production conditions.
| Item | Specification | Buyer Consideration |
|---|---|---|
| Model | RDRY-320B-9C | Designed for label converters and packaging printers seeking premium multi-color label production capabilities. |
| Printing Colors | 9 Colors | Supports complex label designs, brand colors, cosmetic labels, wine labels, pharmaceutical labels, and specialty packaging applications. |
| Maximum Printing Speed | 100 m/min | Suitable for both short-run and medium-volume production while maintaining stable print quality and registration accuracy. |
| Maximum Printing Width | 320 mm | Covers most self-adhesive label, packaging label, barcode label, and industrial label production requirements. |
| Maximum Web Width | 330 mm | Provides sufficient flexibility for various narrow web label materials and production layouts. |
| Printing Repeat Length | 175–380 mm | Supports a wide range of label formats, from small pharmaceutical labels to larger beverage and packaging labels. |
| Registration Accuracy | ±0.15 mm | Important for premium labels requiring precise color alignment, small text reproduction, and barcode readability. |
| Drive System | Full Servo Control | Reduces setup time, minimizes waste, and improves registration stability during multi-color printing. |
| Unwinding Roll Diameter | 600 mm | Larger roll capacity helps reduce material changeovers and improve production efficiency. |
| Rewinding Roll Diameter | 600 mm | Supports longer production runs and efficient finished roll collection. |
| Suitable Materials | Adhesive Paper, Coated Paper, Thermal Paper, PP, PE, PET, BOPP Film, Synthetic Paper | Compatible with most materials used in food, beverage, pharmaceutical, cosmetic, logistics, and industrial label production. |
| Drying System | UV Drying System | Provides fast ink curing and supports high-quality label printing on paper and film materials. |
| Air Pressure | 0.6 MPa | Ensure adequate compressed air supply for stable machine operation and auxiliary systems. |
| Power Supply | 380V ±10%, 3 Phase | Voltage can be customized according to local electrical standards and factory requirements. |
| Machine Weight | Approximately 5000 kg | A heavy-duty frame helps reduce vibration and maintain stable printing performance during continuous production. |
| Machine Dimensions | 5500 × 1350 × 2250 mm | Buyers should evaluate workshop space, material flow, and maintenance access before installation. |
| Optional Functions | Cold Foil, Lamination, Rotary Die Cutting, Slitting, Inspection System | Allows printers to expand production capabilities and create a complete inline label converting solution. |
| Support Services | Installation Guidance, Operator Training, Technical Support, Spare Parts Service | Useful for overseas label manufacturers, distributors, and new production line projects. |
Download Product Information
Features & Technology
RDRY-320B-9C Full Servo Label Flexo Printing Machine Technology
Advanced printing, registration, and web handling technologies designed to improve print quality, reduce production waste, and support high-value label manufacturing for global converters and packaging printers.

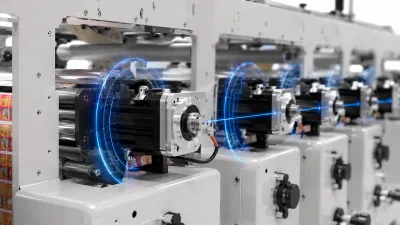

Full Servo Drive System
Independent servo motors provide accurate control of each printing unit, improving registration stability, reducing setup time, and helping operators achieve consistent printing results.

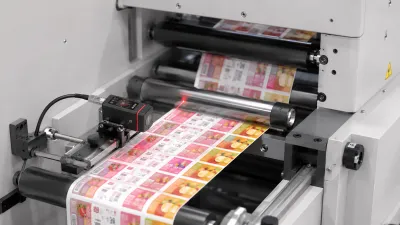

Automatic Registration Control
High-precision registration technology maintains accurate color alignment throughout multi-color printing, making it suitable for premium labels, fine text, barcodes, and detailed graphics.

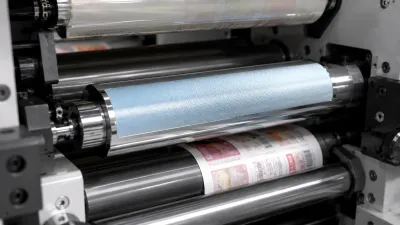

Ceramic Anilox Roller Technology
Precision ceramic anilox rollers ensure consistent ink transfer, uniform color density, and excellent print quality across various label materials and production runs.

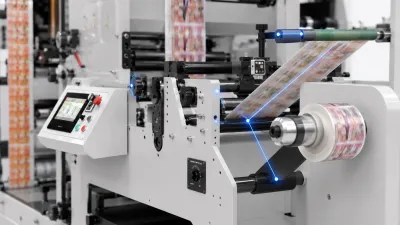

Automatic Tension Control
Continuous web tension monitoring helps maintain stable material transport, reducing registration drift and improving print consistency on paper and film substrates.

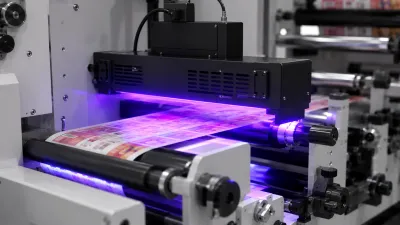

Efficient UV Drying System
High-performance UV curing technology enables fast ink drying, improves production speed, and supports high-quality printing on self-adhesive labels and film materials.

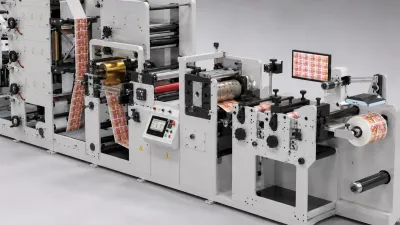

Modular Inline Converting
Optional units such as lamination, cold foil stamping, rotary die cutting, slitting, inspection, and rewinding can be integrated to create a complete label production solution.
Materials & Applications
Compatible Materials & Label Applications
The RDRY-320B-9C Full Servo 9 Color Label Flexo Printing Machine supports a wide range of label materials and packaging applications. It is designed for label converters, packaging printers, and manufacturers producing premium self-adhesive labels for food, beverage, cosmetics, pharmaceuticals, logistics, and industrial markets.
Compatible Label Materials
Self-Adhesive Paper
Thermal Paper
PP Film
PE Film
PET Film
BOPP Film
Synthetic Paper
Typical Label Applications
Cosmetic Labels
Beauty & personal care packaging
Pharmaceutical Labels
Medicine & healthcare packaging
Food Labels
Packaged food & retail products
Beverage Labels
Water, juice, beer & soft drinks
Wine Labels
Premium wine & spirits packaging
Logistics Labels
Shipping, warehouse & tracking systems
Security Labels
Anti-counterfeit & product authentication
Industrial Labels
Chemicals, lubricants & industrial products
Typical Label Printing Production Workflow
Label Design & Artwork
Brand graphics, label layout, color requirements, and production file preparation
Material Unwinding
Stable feeding of self-adhesive paper, PP, PE, PET, BOPP, or other label materials
9-Color Flexo Printing
RDRY-320B-9C full servo label flexo printing machine for premium multi-color labels
UV Drying & Registration Control
Fast ink curing and accurate color alignment for stable label printing quality
Inline Converting
Optional lamination, cold foil, rotary die cutting, slitting, inspection, and rewinding
Machine Video
See the RDRY-320B-9C Printing Premium Labels in Production
Watch the RDRY-320B-9C Full Servo 9 Color Label Flexo Printing Machine operating under real production conditions. Evaluate print quality, registration accuracy, material handling performance, UV curing results, and finished label quality before investing in your next label printing solution.
9-Color Flexo Printing Performance See multi-color label production, color consistency, registration accuracy, and overall printing quality on self-adhesive label materials.
Full Servo Registration Control Review registration stability during high-speed operation and observe how the servo system helps reduce waste and improve printing precision.
Material & Application Verification Request machine videos based on your specific label materials, including adhesive paper, PP, PE, PET, BOPP film, and your target label applications.
FAQ
RDRY-320B-9C Full Servo 9 Color Label Flexo Printing Machine FAQs
Practical answers for label converters, packaging printers, distributors, and investors evaluating the RDRY-320B-9C Full Servo 9 Color Label Flexo Printing Machine.
What types of labels can the RDRY-320B-9C produce?
The machine is suitable for producing self-adhesive labels, cosmetic labels, pharmaceutical labels, food labels, beverage labels, wine labels, logistics labels, security labels, and industrial labels.
What materials can this label flexo printing machine print?
The machine can process self-adhesive paper, coated paper, thermal paper, PP film, PE film, PET film, BOPP film, synthetic paper, and other narrow web label materials commonly used in the packaging industry.
Why choose a 9 color label flexo printing machine?
A 9-color configuration allows printers to handle complex label designs, brand colors, gradients, security features, and premium packaging effects in a single production run, reducing outsourcing and improving profitability.
What are the advantages of the full servo control system?
The full servo system improves registration accuracy, shortens setup time, reduces material waste, and delivers more stable printing performance compared with traditional mechanical transmission systems.
Can the machine print on film materials such as PP, PET, and BOPP?
Yes. The RDRY-320B-9C is suitable for printing on PP, PET, PE, and BOPP films when configured with the appropriate tension control and UV drying systems.
What is the maximum printing speed?
The maximum printing speed is 100 m/min. Actual production speed may vary depending on material type, artwork complexity, ink requirements, and production conditions.
Can the machine be equipped with die cutting and lamination units?
Yes. Optional inline functions include lamination, cold foil stamping, rotary die cutting, slitting, inspection systems, and rewinding, allowing the machine to become a complete label converting solution.
Is this machine suitable for new label printing businesses?
Yes. The machine is suitable for both established label manufacturers and new investors seeking to enter the self-adhesive label and packaging printing industry with advanced production capabilities.
Can the machine voltage be customized for different countries?
Yes. Power supply specifications can be customized according to local electrical standards, including voltage, frequency, and factory requirements before production.
Does RUIDA Machine provide installation and technical support?
Yes. RUIDA Machine provides installation guidance, commissioning support, operator training, spare parts service, and ongoing technical assistance to help customers achieve stable production after delivery.
